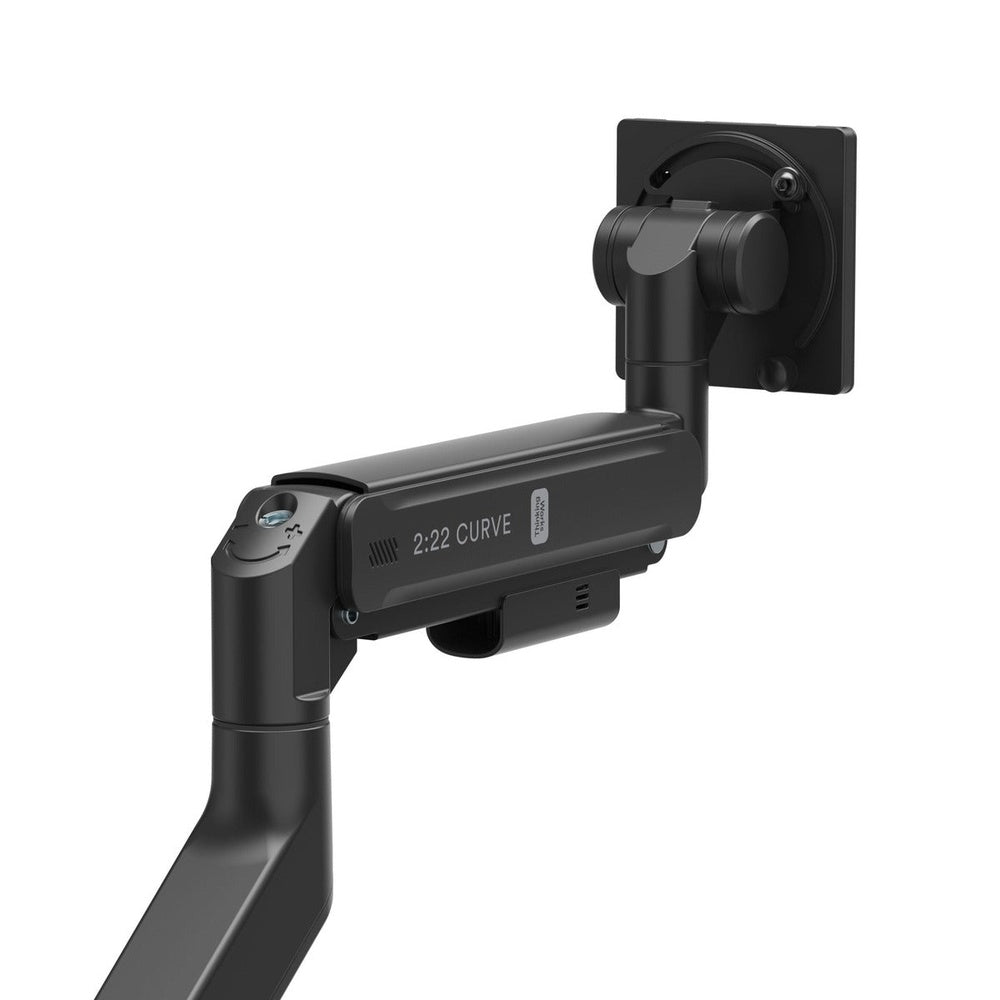

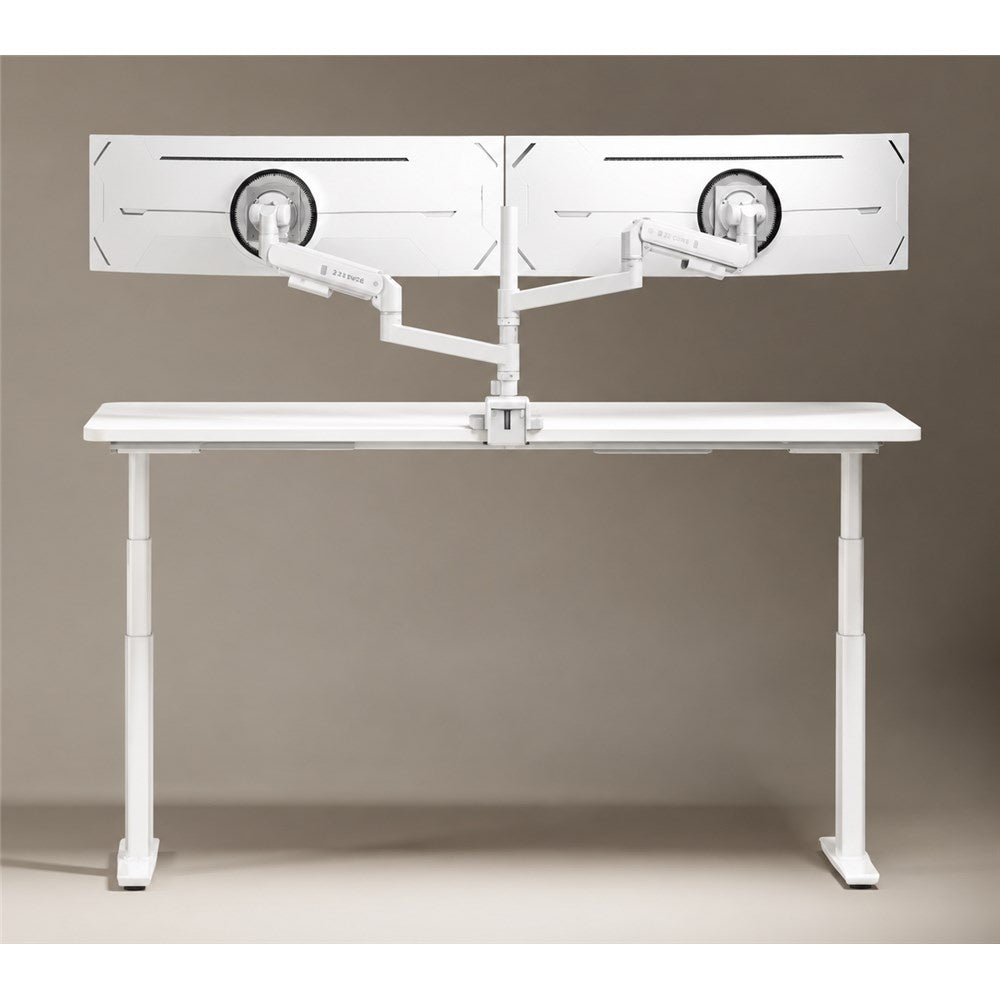

Thinking Works 2:22 Curve dual monitor arm in matte black holding two monitors side by side Thinking Works 2:22 Curve dual monitor arm in matte black, studio product view Thinking Works 2:22 Curve dual monitor arm in matte black, alternate angle Thinking Works 2:22 Curve dual monitor arm in matte white holding two monitors side by side Thinking Works 2:22 Curve dual monitor arm in matte white, studio product view Thinking Works 2:22 Curve dual monitor arm in matte white, alternate angle Thinking Works 2:22 Curve monitor arm detail view of the arm joint and matte black finish Thinking Works 2:22 Curve monitor arm detail view of the gas spring mechanism Top-down view of a workstation using the Thinking Works 2:22 Curve monitor arms, showing cable management Rear view of a desk setup with the Thinking Works 2:22 Curve monitor arm mounted via desk clamp

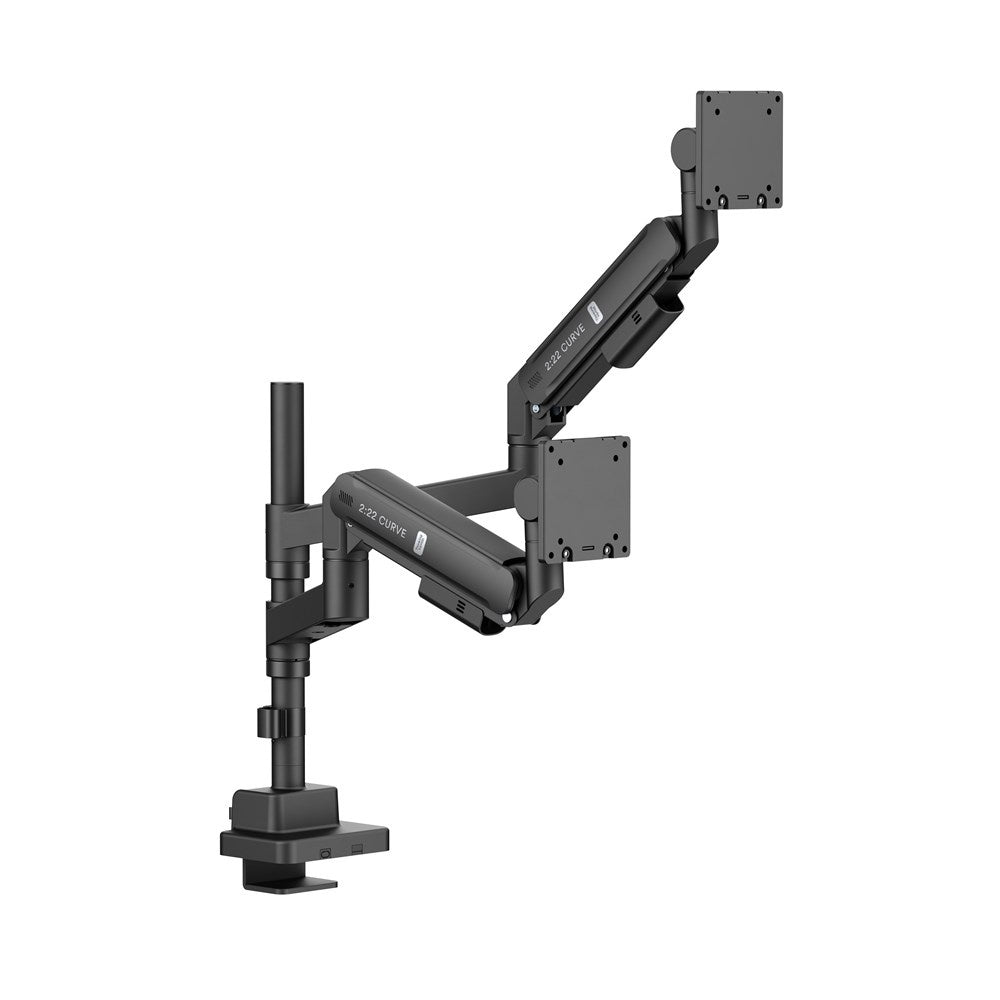

2:22 Curve Dual Monitor Arm


$297.00

Continue Shopping or View Cart

Collections: Dual Monitor Arms, New products

The 2:22 Curve Dual is Thinking Works' heavy-duty dual monitor arm, built for workstations running large or curved screens that standard dual arms cannot support. Each arm holds a 24 to 57 inch monitor up to 27 kg, giving dual-screen users serious capacity with the smooth control of a gas spring mechanism.

Features
  • Heavy-Duty Dual Support: Each arm holds flat screens from 2 to 27 kg and curved screens from 2 to 22 kg, sized from 24 to 57 inches

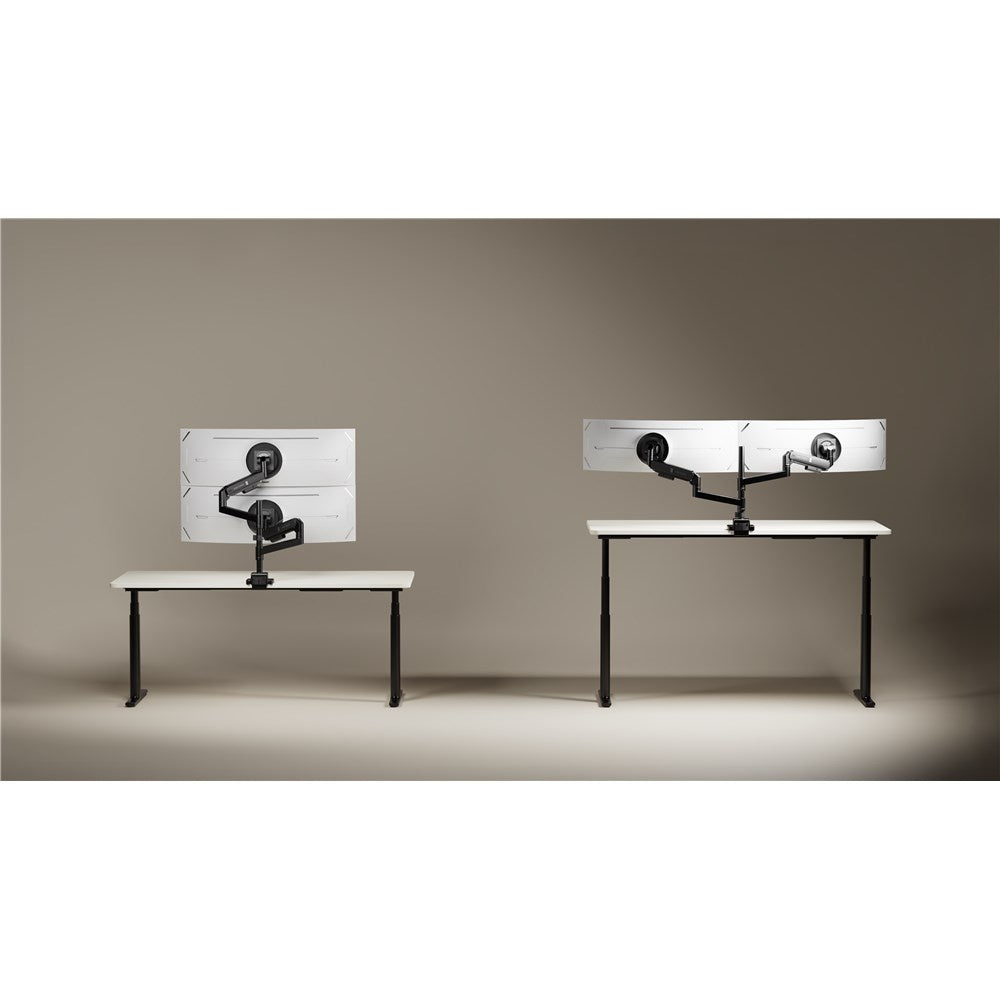

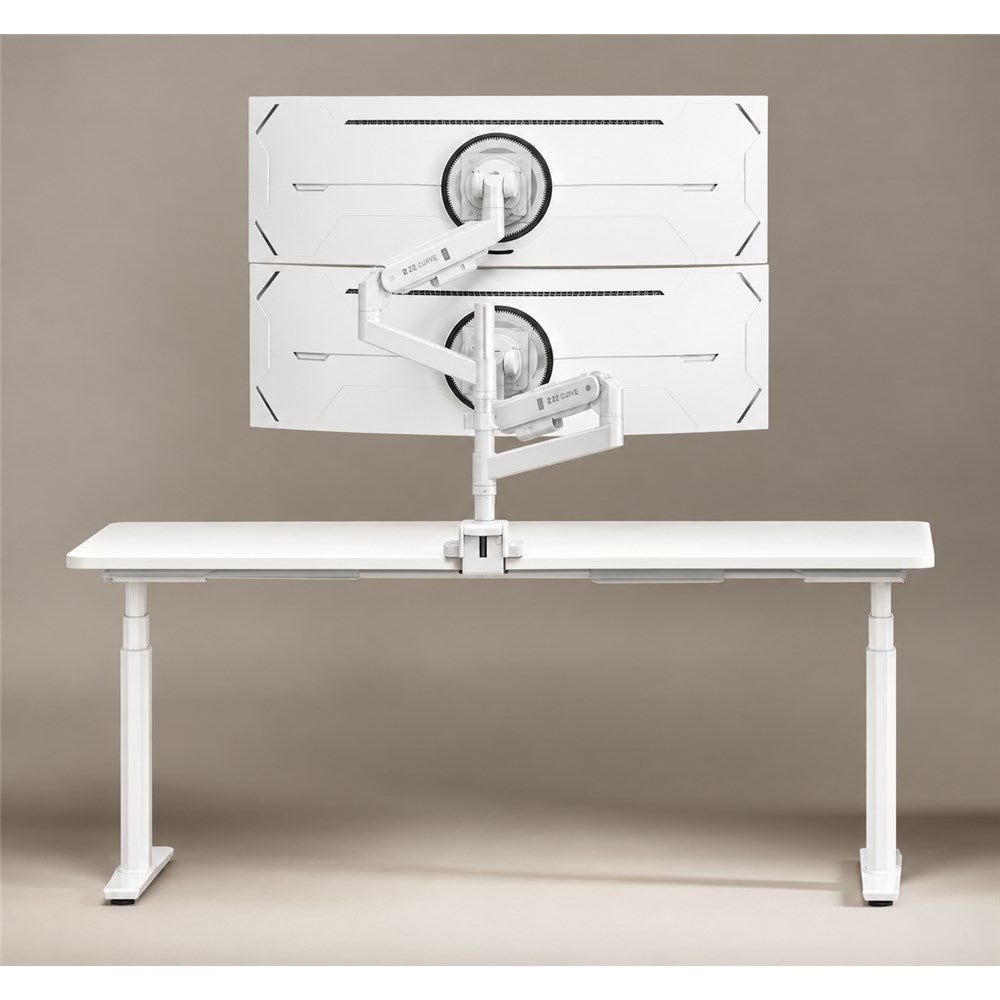

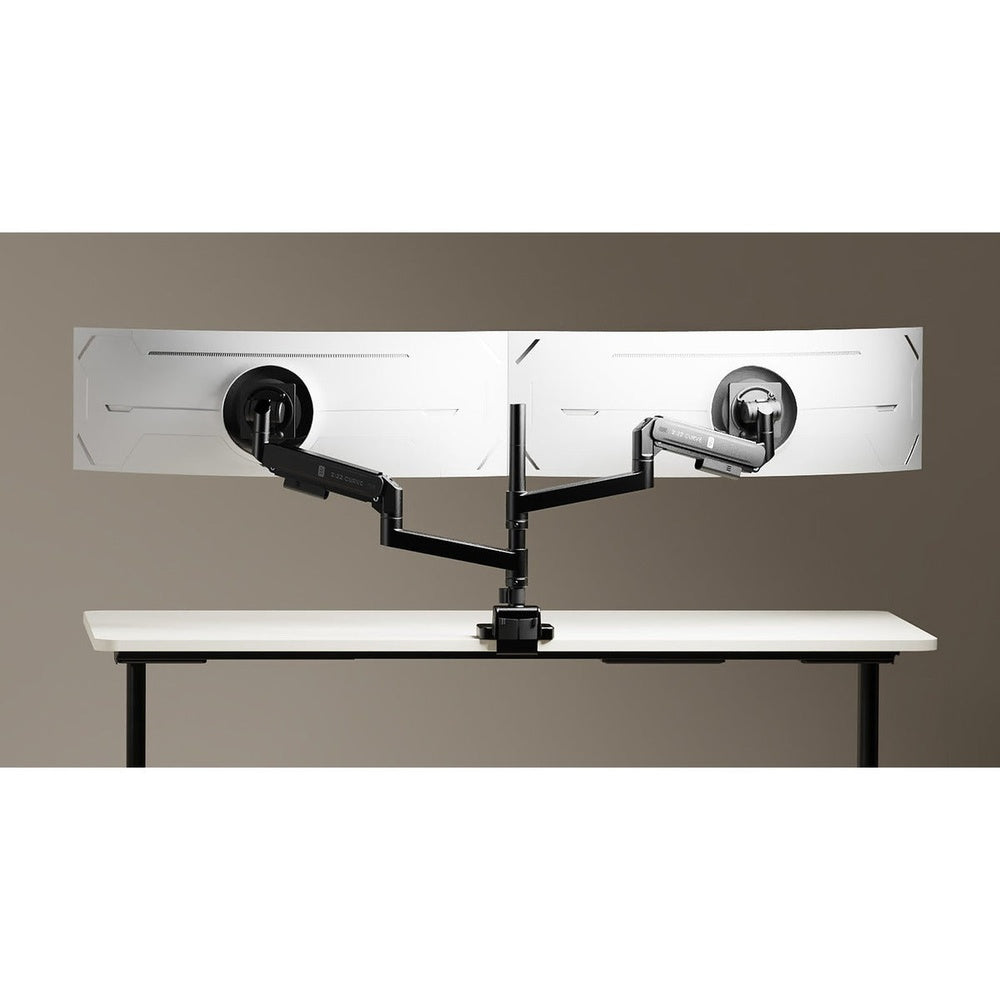

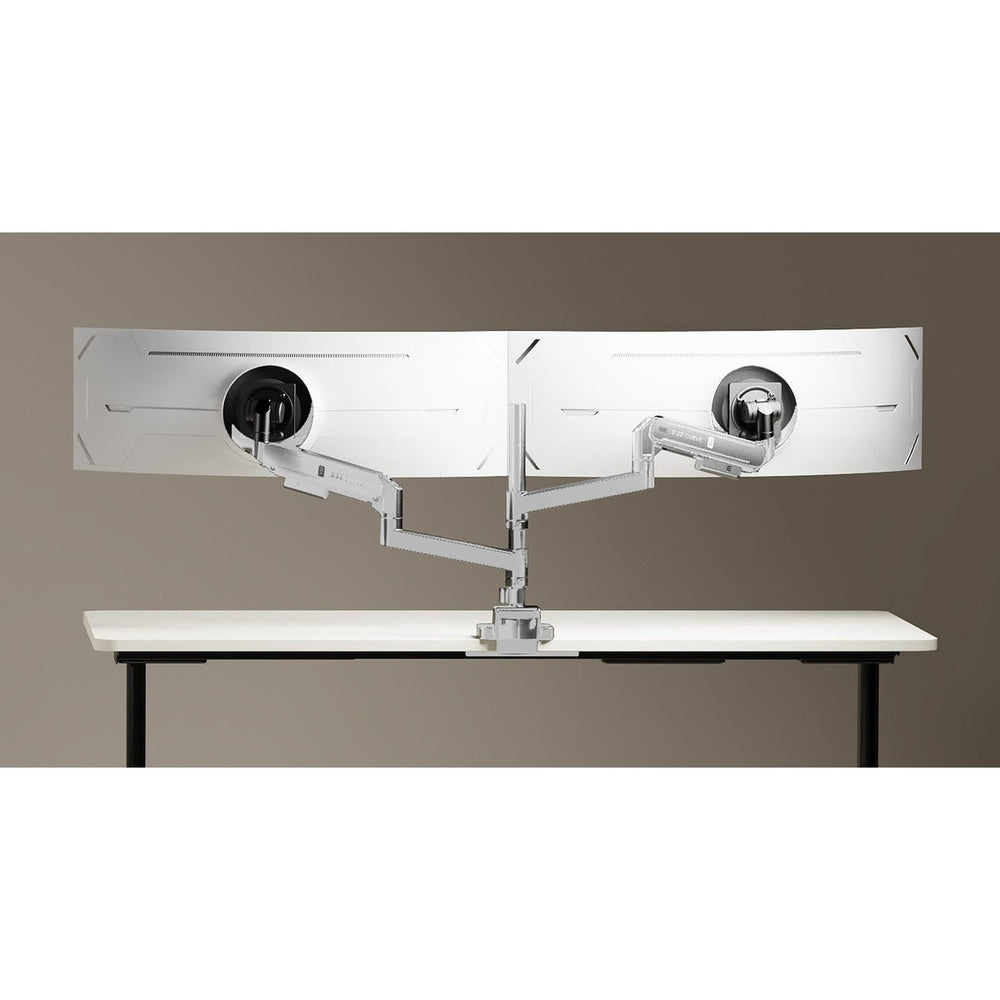

  • Side-by-Side or Vertical Stacking: Configure two screens side by side up to 750 mm high, or stack them vertically up to 840 mm
  • Advanced Gas Spring Mechanism: Smooth, fluid adjustment on both arms, with easy tension tuning to match each monitor's weight
  • Quick-Release VESA Plate: 360 degree rotating plates fit 75, 100 and 200 mm VESA patterns for fast monitor installation
  • Wide Movement Range: Tilts from +60 degrees to -20 degrees, swivels 90 degrees each way and rotates 180 degrees for landscape or portrait use

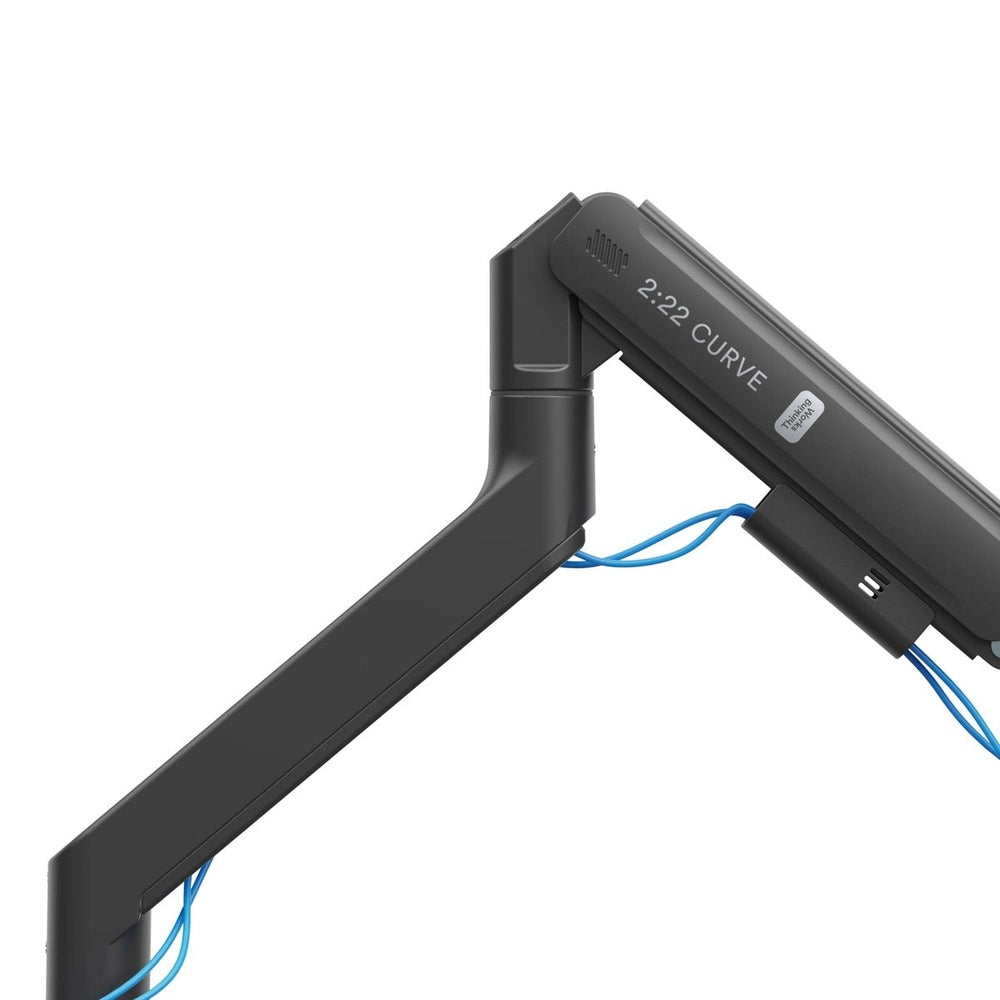

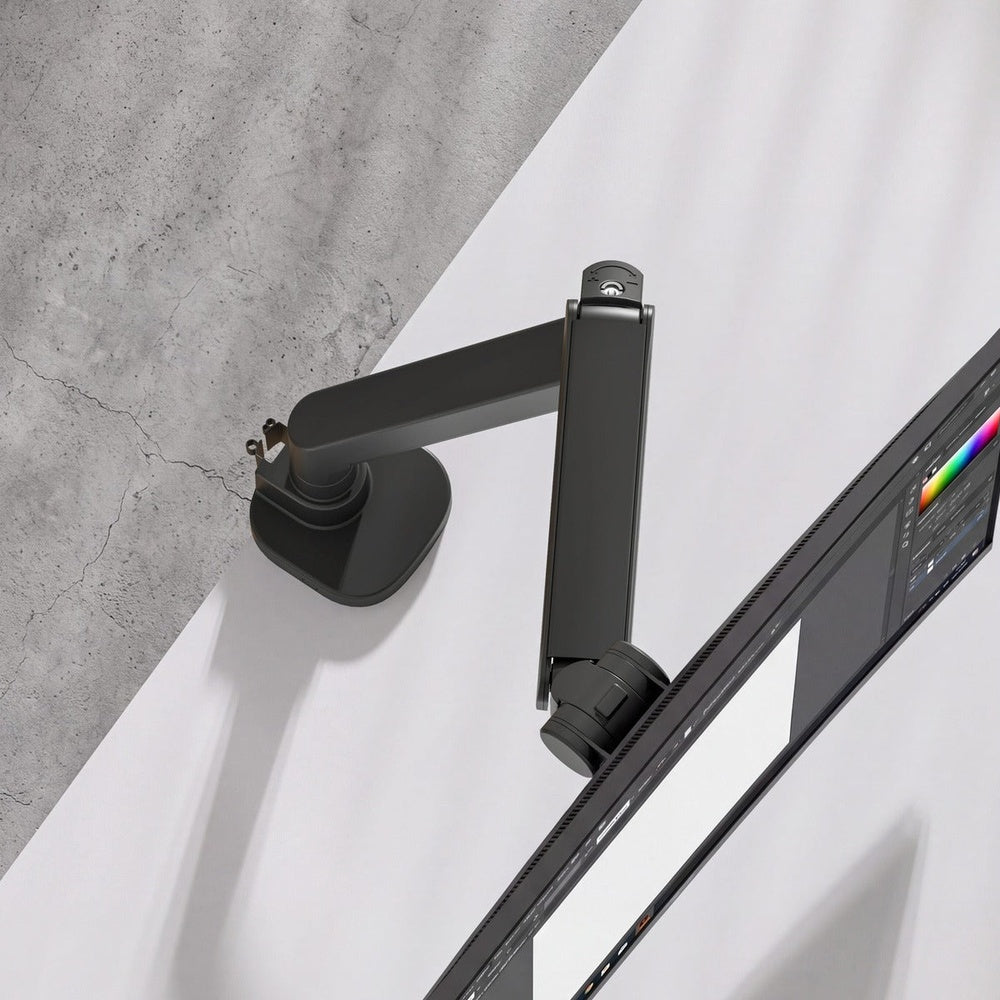

  • Integrated Cable Management: Routes cables along both arms and through the base for a tidy workspace

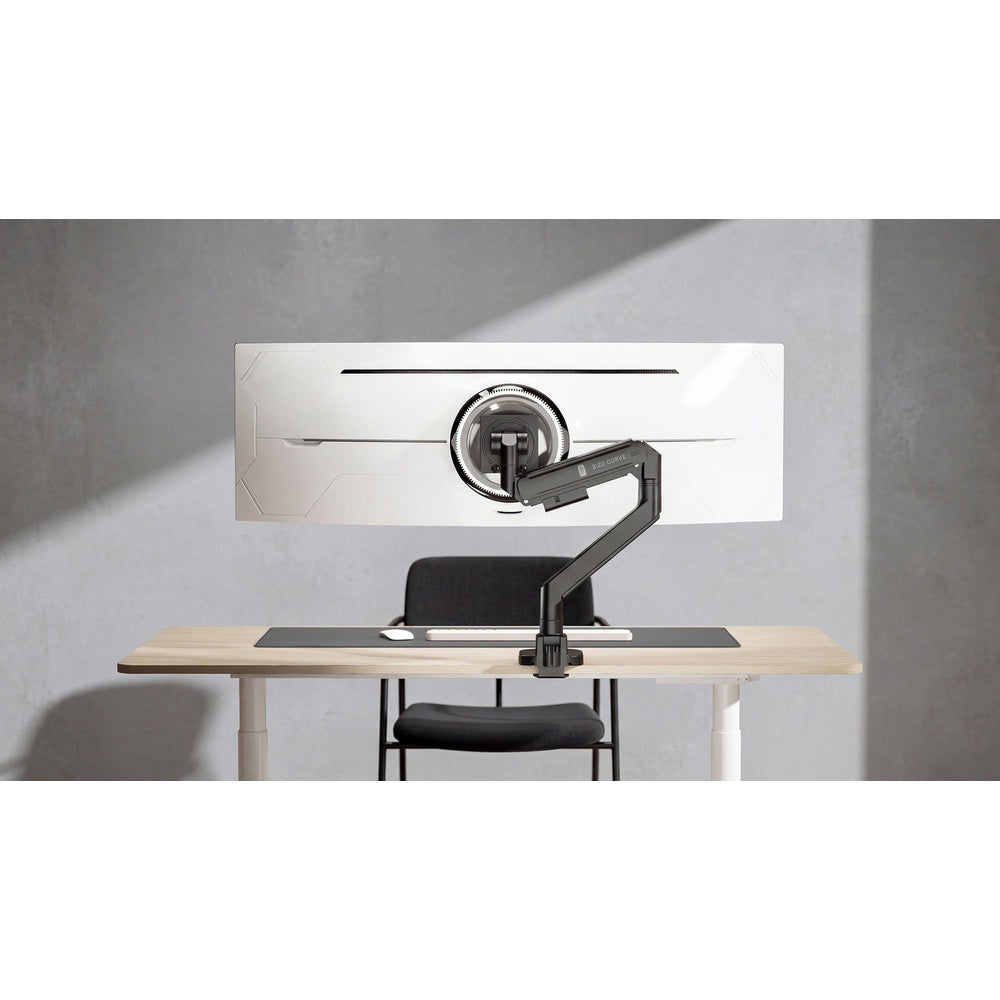

  • Two Mounting Options: Desk clamp and bolt-through both suit worktops 10 to 50 mm thick
  • 7 Year Manufacturer Warranty: Backed by Thinking Works
Specifications
Weight Capacity 2 to 27 kg per arm (flat screens); 2 to 22 kg per arm (curved screens)
Fit Screen Size 24 to 57 inch, straight or curved
Max Height 750 mm side-by-side; 840 mm vertical stacking
Arm Extension 320 to 520 mm
Tilt +60 degrees to -20 degrees
Swivel +90 degrees to -90 degrees
Screen Rotation 180 degrees landscape to portrait
Display Compatibility VESA 75 x 75, 100 x 100 and 200 x 200 mm, quick release, centre mounted only
Worktop Thickness Desk clamp: 10 to 50 mm; Bolt-through: 10 to 50 mm
Materials Aluminium arm and base, ABS trim, steel VESA bracket
Colours Matte Black or Matte White
Warranty 7 years

Downloads
Download Product Info Brochure
Download Specification Specification
Download Monitor Arm Comparison Sheet Monitor Arm Comparison Sheet
