Daisyone Dual Monitor Arm

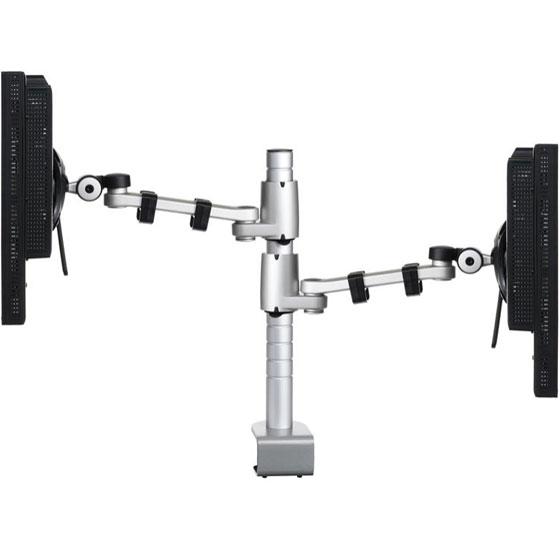

Daisyone is a compact and geometrical monitor support solution that allows two screens to be mounted at the same height on a single post, without the need for a separate back-to-back bracket. Used on the quad post, Daisyone also offers a 180 degree stop function, preventing potential damage to privacy screens.



Features
  • Precision-engineered arm allows for 2 screens to be mounted at the same height, without the need for a separate back-to-back bracket
  • Can be mounted to walls, desks and slatwalls
  • Suitable for multi-screen environments
  • Up to four arms can be easily mounted on one post without additional brackets
  • Quick release as standard – the screen can be removed in seconds
  • Cable management facility
  • Easy to install - the Daisyone arm is delivered pre-assembled

Specifications
Weight Capacity up to 8.5 kg per screen
LCD Size up to 24" per screen
Tilt 160°up / down
Rotation 90° for portrait / landscape viewing
Pan 180° left / right
Lift N/A
Arm Extension 505 mm
Post Height 500 mm
Colour Silver
Display Compatibility VESA 75/100mm
Mounting Type Desk clamp - for desk < 67 mm thick
Bolt through - for desk < 75 mm thick


Technical Drawing

For technical drawing please view in gallery or download PDF file.
