Spacedec Display Pole

Make your own - Multi display configuration

The Spacedec Display Pole is a simple, flexible and configurable desk mounting system for flat screen LED and LCD monitors. The pole comes in multiple heights, with each supplied with a Quickshift Donut to enable display attachment. Additional Donuts can be added to support more displays depending on the combined screen weight and pole rating. Designed for commercial, retail and manufacturing applications, the system features integrated cable management and tension control for POS and touchscreen operation.

Quickshift display Donuts are independantly adjustable for height position and rotation around the pole. They feature Quick Attachment heads for easy screen attachment/ replacement and an integrated ball-joint which allows for independant pan and tilt adjustment as well as portrait to landscape screen rotation. A security screw is supplied with each to help prevent unauthorised screen removal.

The Display Pole system is designed for screens with a standard VESA mounting hole pattern (refer specifications below). It ships with display and desk attachment hardware.

ATDEC Spacedec Display Pole is available in three different lengths - 420mm, 750mm and 1150mm. Spacedec Display Pole comes with one Quick Shift Donut to guarantee a customized display installation. For multi display configuration you can add more donuts.

Additional Donuts are available here.


Flexible mounting

  • Designed for screens 12" (30.5cm) or larger
  • Each Pole type is supplied with one Donut display attachment
  • Additional Donuts can be added separately
  • Each Donut supports displays weighing up to 12kg (26.5lbs)
  • Each pole can support a different combined total weight

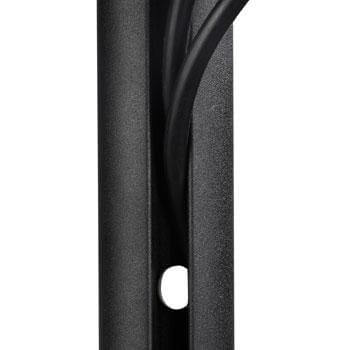

  • Poles support both internal and external cable management
  • Poles can be installed on desks up to 38mm (1.5") thick

Enhanced positioning adjustment

  • Donuts feature a Quickshift operation for easy user adjustment
  • Donuts are independantly height adjustable
  • Donuts can be independantly rotated around the pole

Enhanced viewing adjustment

  • Donuts feature an integrated ball-joint mechanism with adjustable tension control
  • Donuts allow full 360º screen rotation
  • Donuts allow +/-20º tilt adjustment
  • Donuts allow +/-20º pan adjustment

Easy to Install

  • Donuts feature a Quickshift head for easy display installation/ replacement and come with a security screw
  • Donuts support displays with standard VESA mounting hole configurations 75x75mm & 100x100mm (WxH)
  • VESA 200x100mm mounting configurations are supported via an optional adaptor plate
  • Poles are supplied with one Donut, installation guide, display mounting hardware, desk clamp and bolt through pole attachment hardware

Durable Design

  • Steel and aluminium construction with quality matt powdercoat finish
  • 10 year warranty if purchased after Jan 1, 2011

Model Option

  • 420mm (16.5") Pole with 12kg (26.5lbs) Max weight rating (SD-DP-420)
  • 750mm (29.5") Pole with 24kg (53lbs) Max weight rating (SD-DP-750)
  • 1150mm (45.25") Pole with 36kg (79.5lbs) Max weight rating (SD-DP-1150)
