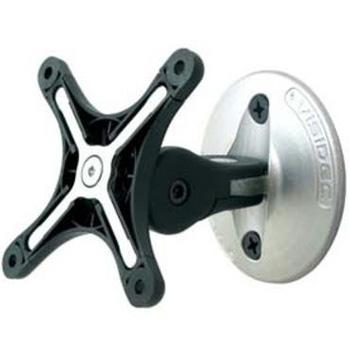

Visidec Monitor Wall Mount





The Visidec Focus VF-WD provides a compact, low profile solution for wall displays that do not require full motion. This is the ultimate space-saving mount designed to maximise visual impact without compromising valuable space. Holding the screen just a few inches from the wall, adjustment for the perfect viewing angle is simple. Horizontal to vertical rotation, and tilt and pan enable the screen to be set at the optimum viewing position. Installation is simple and incorporates Visidec’s FlexiStar™ mechanism which adapts to two different mounting hole patterns - either 75 x 75mm or 100 x 100mm.

Specifications
  LCD Size   12" to 24"
  Weight Capacity   8 kg
  Tilt   +/- 70°
  Pan   +/- 45°
      Larger monitor will reduce the amount of adjustment
  Rotation   Allows for landscape to portrait screen rotation
  Min distance to the wall   109 mm
  Display Compatibility   VESA 75/100mm
