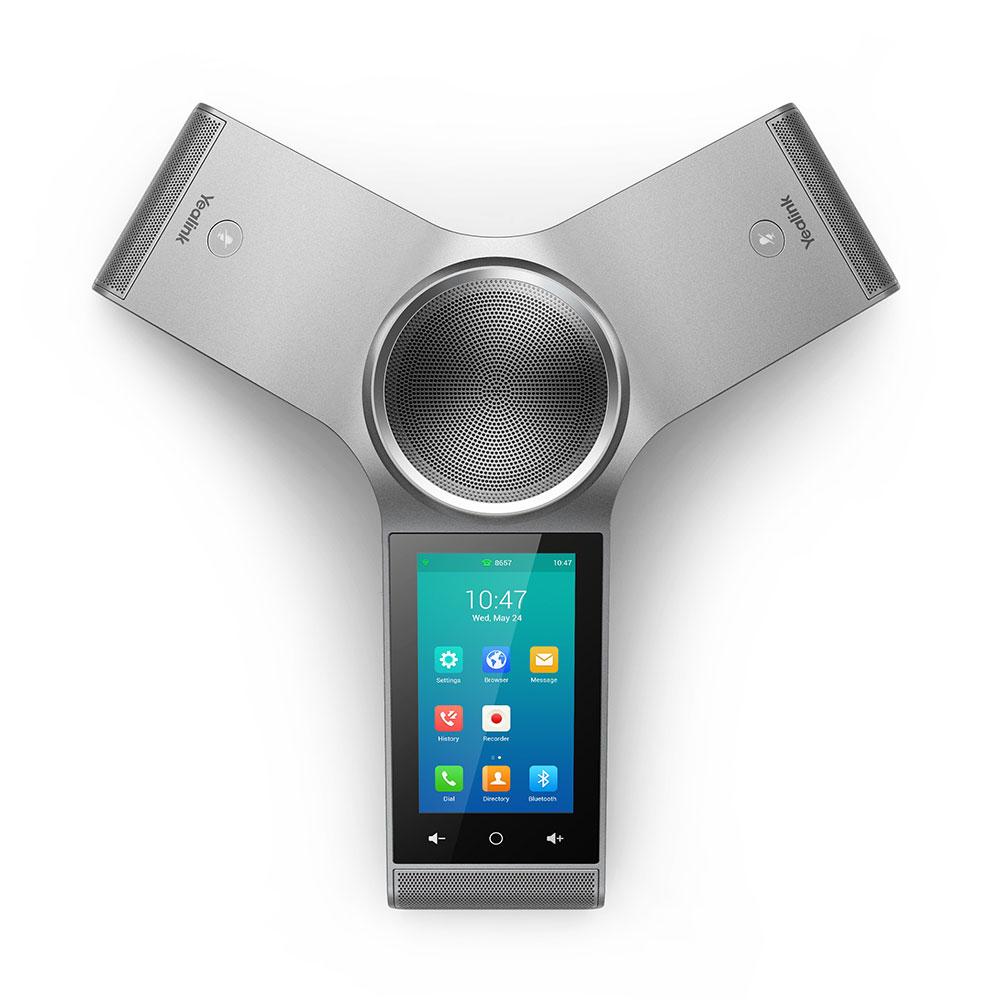

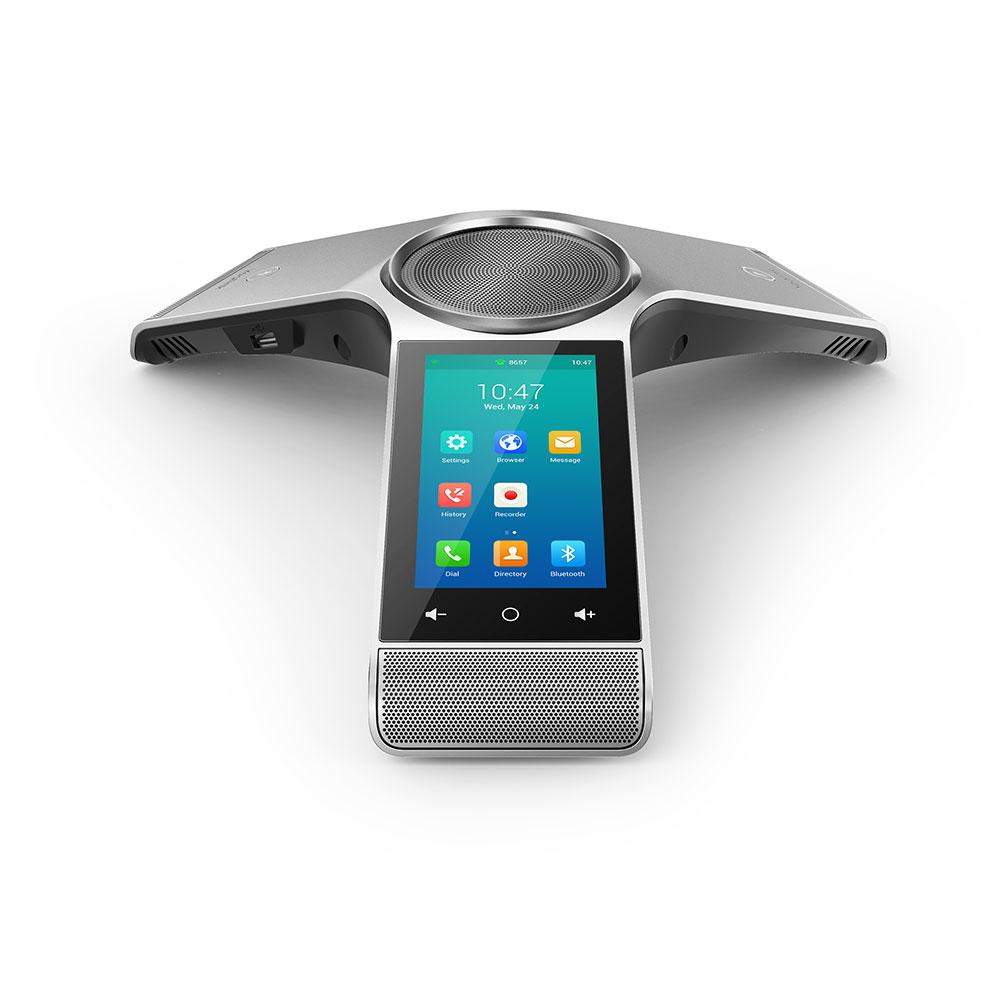

Yealink CP960 Touchscreen Android Conference Phone with Wireless Mics





The Yealink CP960 is an Android based IP conference phone for medium to large conference rooms. Its 3 microphone array provides 360 degree voice pickup across a 6 metre range, with Yealink Noise Proof technology to suppress background noise. Up to five parties can join a conference call from different locations, and the phone pairs with smartphones via Bluetooth or PCs and tablets via the USB Micro-B port to create a hybrid UC meeting. Two optional CPW90 wireless expansion microphones extend coverage for larger rooms.

Features
  • Optimal HD audio with full duplex technology
  • Yealink Noise Proof technology
  • 6 metre, 360 degree microphone pickup range

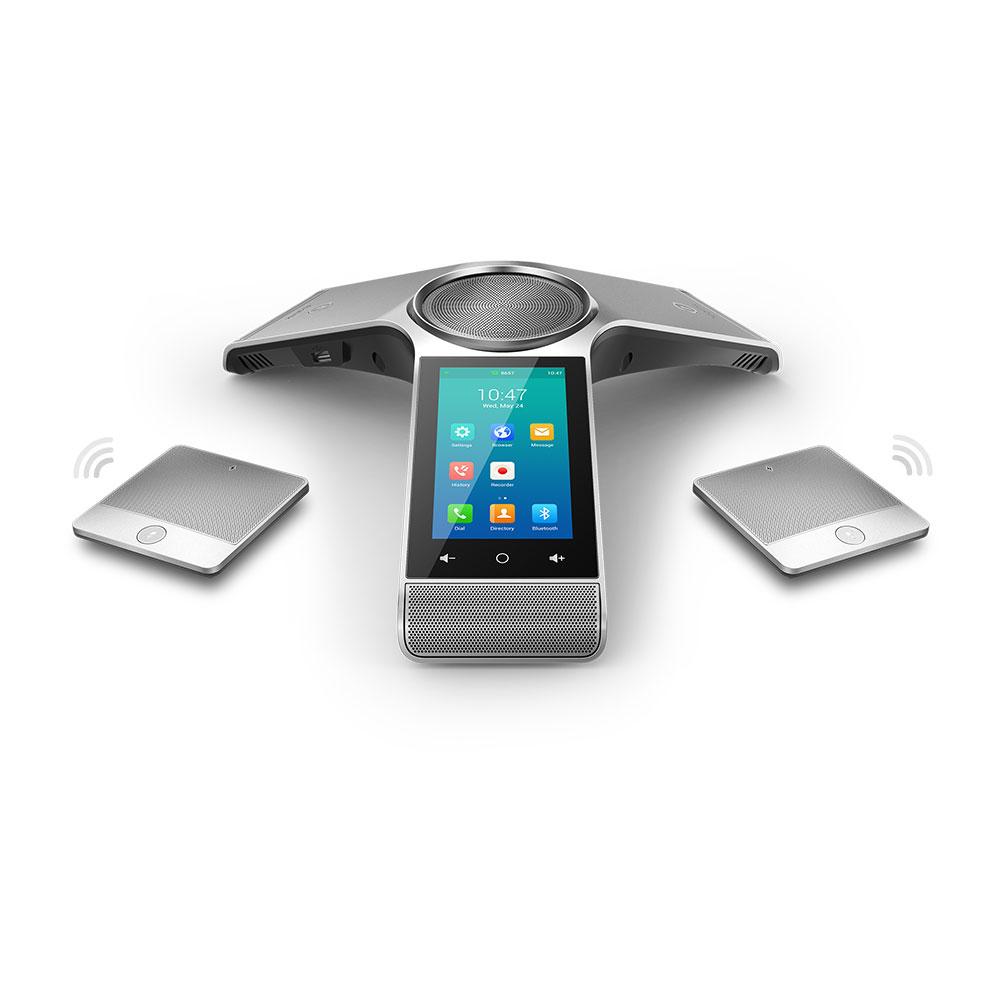

  • Two additional CPW90 wireless expansion microphones (optional)
  • Built in 3 microphone array
  • Based on Android 5.1 operating system
  • 5 inch multi-touch screen, 720 x 1280 resolution
  • Yealink Pentagon Meeting Room support
  • 5 way conference call and hybrid UC meeting
  • Built in Wi-Fi (2.4GHz/5GHz, 802.11 b/g/n/ac)
  • Built in Bluetooth 4.0
  • Connects to PC via USB Micro-B port
  • Local and USB call recording, up to 100 hours recording time
  • External loudspeaker connection via 3.5mm audio-out port
Audio Features
  • Optimal HD audio
  • Yealink Noise Proof technology
  • 20 foot (6 metre) microphone pickup range
  • Built in 3 microphone array, 360 degree voice pickup
  • 56 mm diameter and 10 W speaker
  • Full duplex speakerphone with AEC
  • Echo cancellation tail length up to 320 ms
  • Background noise suppression
  • Codecs: G722, G722.1C, G726, G729, G723, iLBC, Opus
  • DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
  • VAD, CNG, PLC, AJB, AGC
Phone Features
  • 1 VoIP account
  • Call hold, mute, DND, call recording, hotline
  • 5 way conference call
  • Redial, call waiting, emergency call
  • Call forward, call transfer, call return, dial plan
  • Ring tone selection/import/delete
  • Set date and time manually or automatically
  • Volume adjustment
  • Pairing via Bluetooth or USB Micro-B port
  • External speaker connection via 3.5mm audio-out port
  • Create and join meetings directly
Directory
  • Local phonebook up to 1000 entries
  • XML/LDAP remote phonebook
  • Intelligent search method
  • Phonebook search/import/export
  • Call history: dialed/received/missed/forwarded
  • Black list
IP-PBX Features
  • Intercom
  • Multicast paging
  • Anonymous call and anonymous call rejection
  • Voice mail
  • Distinctive ringtone
  • Call pickup
Specifications
Display 5 inch 720 x 1280 capacitive touch screen, volume key, home button
Interface 1 x RJ45 10/100M Ethernet, Wi-Fi (2.4GHz/5GHz, 802.11 b/g/n/ac), Bluetooth 4.0, PoE (IEEE 802.3af, class 4), 2 x wired MIC port, 2 x USB 2.0, 1 x 3.5mm audio-out, 1 x USB 2.0 Micro-B device port, 1 x security slot
Network and Security SIP v1 (RFC2543) and v2 (RFC3261), SIP server redundancy, IPv4/IPv6, NAT traversal (STUN), proxy and peer-to-peer SIP link mode, static/DHCP IP assignment, HTTP/HTTPS web server, SNTP time sync, UDP/TCP/DNS-SRV (RFC 3263), QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP, SRTP voice encryption, TLS, HTTPS certificate manager, AES configuration file encryption, digest authentication (MD5/MD5-sess), OpenVPN, IEEE802.1X
Management Configuration via browser, phone or auto-provision; auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy; auto-provision with PnP; Zero-sp-touch, TR-069, SNMP; reset to factory, reboot; system log
Physical External Yealink PoE adapter (optional); power consumption (PoE) 5.25 W to 12.3 W; dimensions (W x D x H) 338 x 338 x 74 mm; operating humidity 10 to 90%; storage temperature -10 to 40°C
In the Box Yealink CP960 IP conference phone, 7.5 m CAT5E UTP Ethernet cable, quick start guide; optional: CPW90 wireless microphone, CPE90 wired microphone, Yealink PoE adapter YLPOE30
