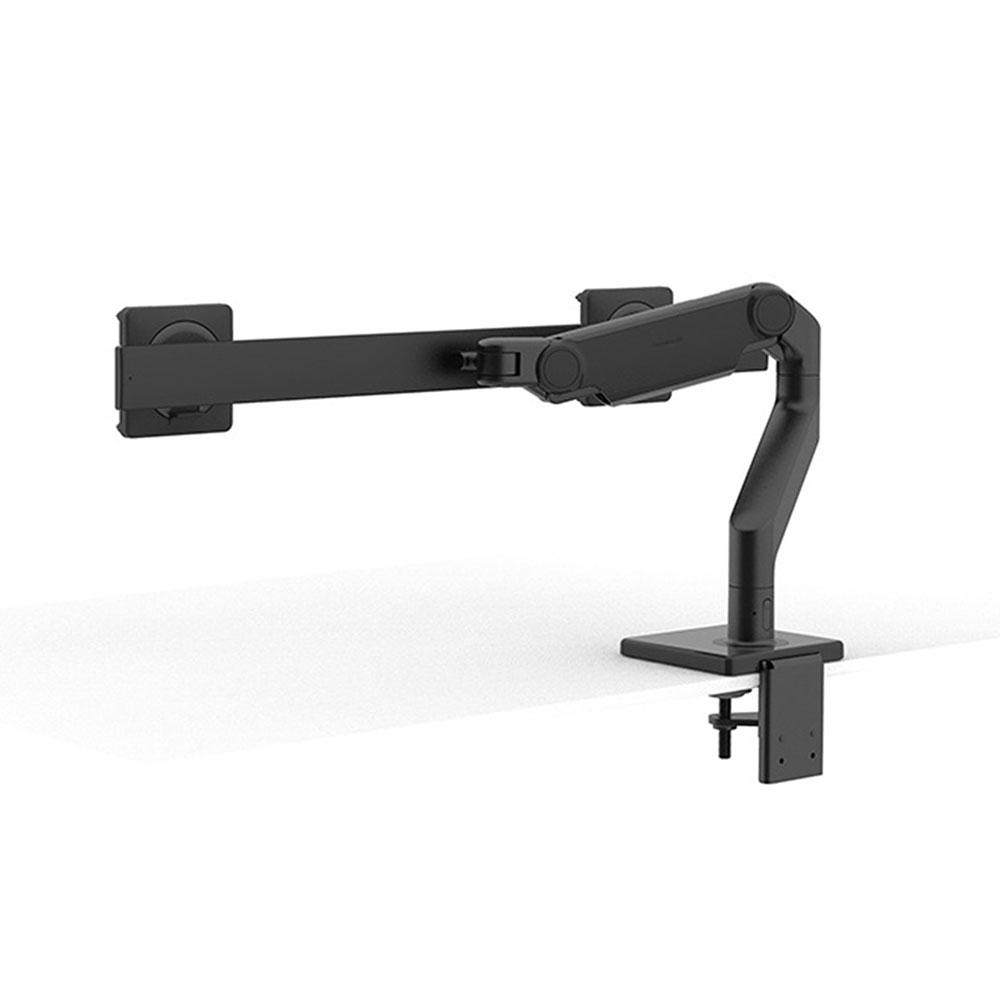

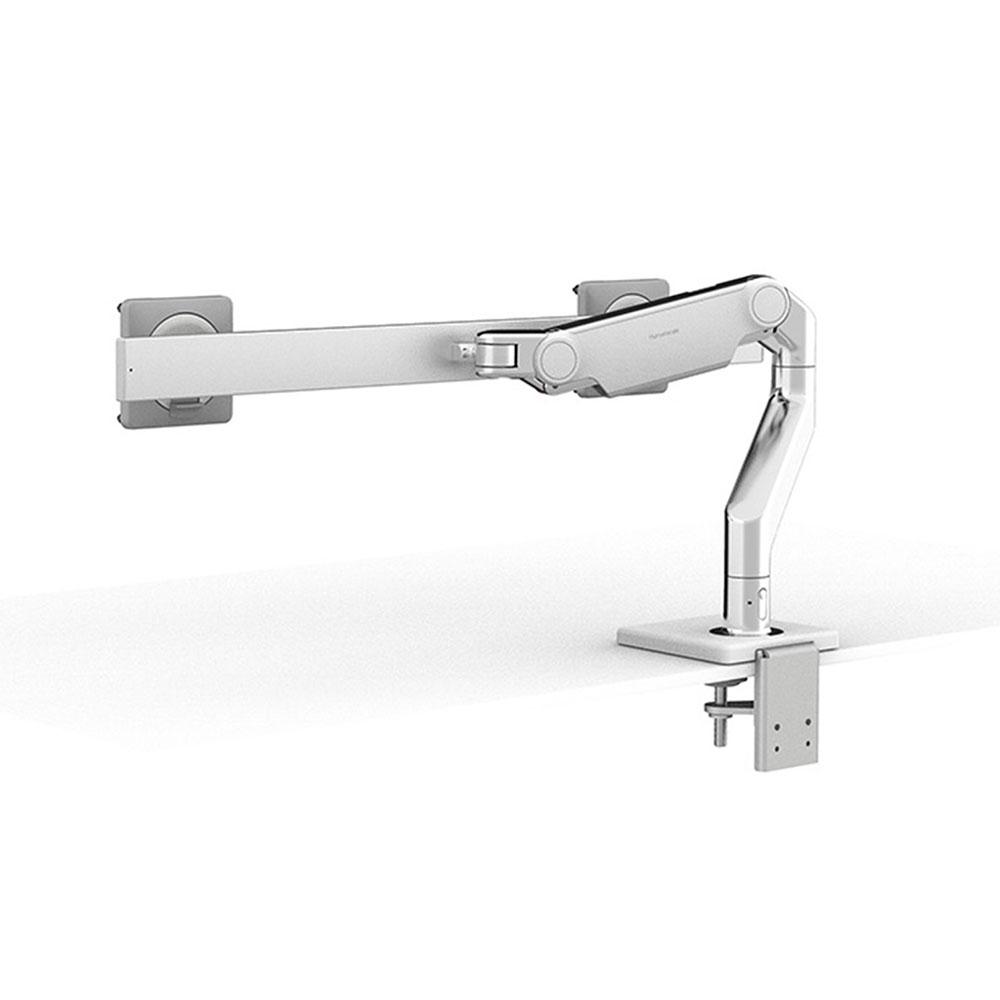

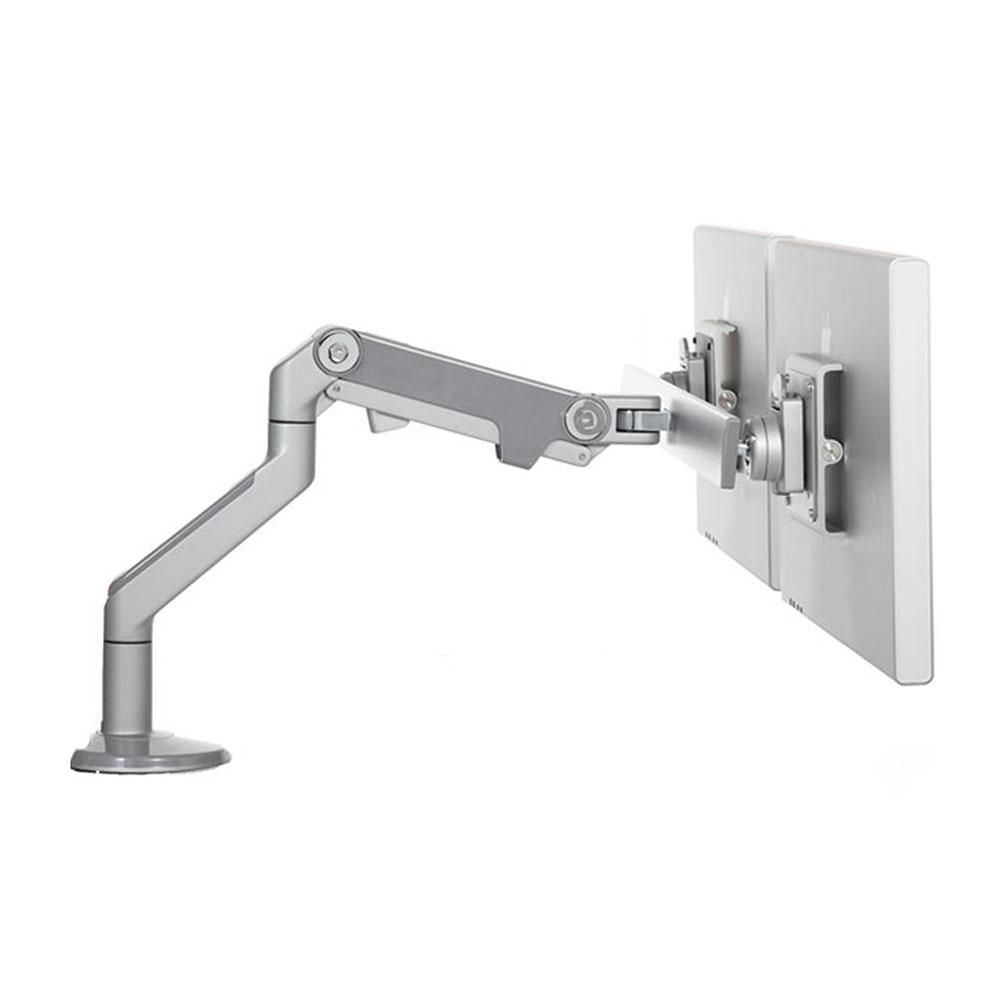

Humanscale M8.1 Dual Monitor Arm





M8.1 supports a better working posture, creates more usable desktop space and helps maintain a clutter-free environment. It offers quick, simple installation and industry-leading flexibility thanks to Quick Release joints that instantly snap together for a secure and robust fit. The M8.1’s robust design easily accommodates heavy monitors (12 kg).

Colour Options:
Polished Aluminum with White Trim
Black with Black Trim

Features

Ease-of-Use and Agility
With innovative features like its Compensator Mechanism and Self-Lubricating Precision Bearings, M8.1 allows users to effortlessly adjust their monitor(s) to their optimal ergonomic position while also providing top-to-bottom cable management.

Sleek, Safe Design
M8.1’s Smart Stop feature allows the user to stop each joint anywhere along its rotation to prevent monitor or arm overhand on the desk edges. In addition, a built-in Counterbalance Indicator lets the installer counterbalance the monitor weight without a monitor.

Unprecedented Flexibility
M8.1 is designed to keep desktops efficient and clutter-free now and in the future. Features include an Accessory Bracket, which supports document holders, headphone holders, whiteboards or whatever wire-shaped accessory you may require at your workspace.

Simple and Sustainable
M8.1 ships unassembled to reduce packaging size and its modular links allow users to quickly design the most productive space without additional parts – all effectively saving resources, energy and shipping costs to get from factory to office. Humanscale monitor arms are also free of harmful Red List chemicals.

Reduced Cost of Ownership
M8.1 features the lowest cost of ownership of any monitor arm, meaning it is the easiest, quickest, and most cost-effective, arm to install and modify for future moves, additions and changes to the workstation. Its durable design also ensures the monitor arm won’t need to be replaced for many years.

  • Minimal, modern design looks great at a variety of workstations
  • The integrated cable management gets cables under control and reduces unsightly clutter
  • M8 monitor mount lets monitors swivel from portrait to landscape, and the M8 also includes a 180° stop mechanism to prevent wall damage from over-rotation
  • For proper support, simply adjust the arm counterbalance for a monitor with a simple hex screw (VESA plate stores 2 hex keys for instant access to adjustment tools)
  • Quick release lets users easily install or remove monitors
  • Security system is built into the monitor arm mount, and it provides an effective theft-deterrent for public areas
  • Earth friendly materials: 62% recycled and 99% recyclable content, so the M8 may contribute to a number of valuable LEED-CI, -NC and -EB credits
Specifications
  • Carries two monitors
  • Weight capacity up to 12 kg
  • Arm reach : 510 mm
  • Height adjustment range: 292 mm
  • Weight: 3.6 kg
  • Weight Compensated Spring technology
  • Built in counter balance indicator
  • Humanscale’s Quick Release ball joint facilitates fast and easy monitor installation and removal
  • 90° or 180º stop mechanism prevents wall damage from over-rotation
  • 360º full rotation
  • Integrated cable management system hides cable clutter for improved organization and aesthetics
  • 15 year warranty

Eco Info

The M8 is a great example of Humanscale's environmental purpose:

  • Made predominantly of steel and recycled aluminum
  • Contains 62% recycled content (43% post-consumer, 19% pre-consumer)
  • 99% recyclable
  • Fewer parts mean fewer manufacturing processes



Earn LEED Credits

The M8 can help building projects achieve valuable LEED credits.

LEED FOR COMMERCIAL INTERIORS

Materials & Resources

Credit 4.1
Recycled Content, 10%

Credit 4.2
Recycled Content, 20%

Innovation & Design

Credit 1.1 – 1.4
Innovation in Design: Ergonomics Strategy

LEED FOR NEW CONSTRUCTION

Materials & Resources

Credit 4.1
Recycled Content, 10%

Credit 4.2
Recycled Content, 20%

Innovation & Design

Credit 1.1 – 1.4
Innovation in Design: Ergonomics Strategy

LEED FOR EXISTING BUILDINGS: OPERATIONS & MAINTENANCE

Innovation in Operations

Credit 1.1 – 1.4
Innovation in Operations: Ergonomics Strategy
