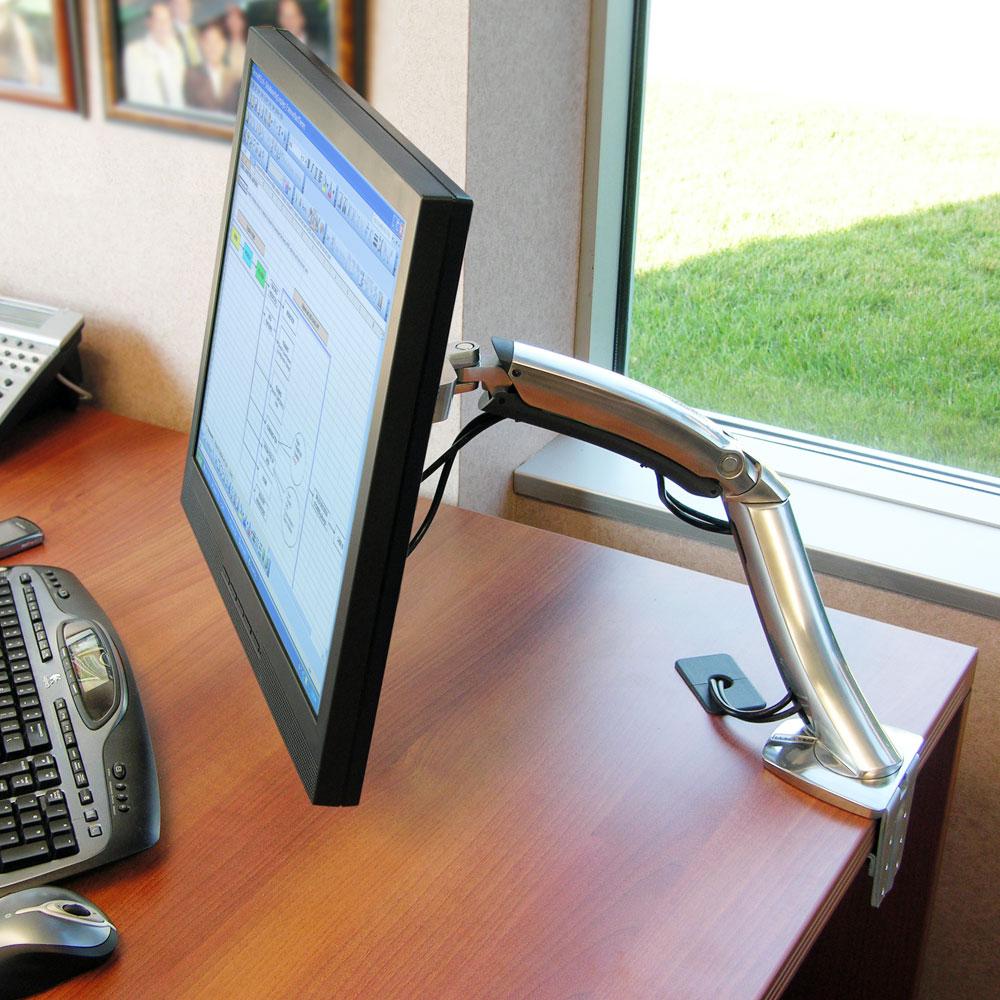

The sleek, adjustable MX LCD Arm accommodates mid-size displays and all-in-one computers weighing up to 13.6 kg.

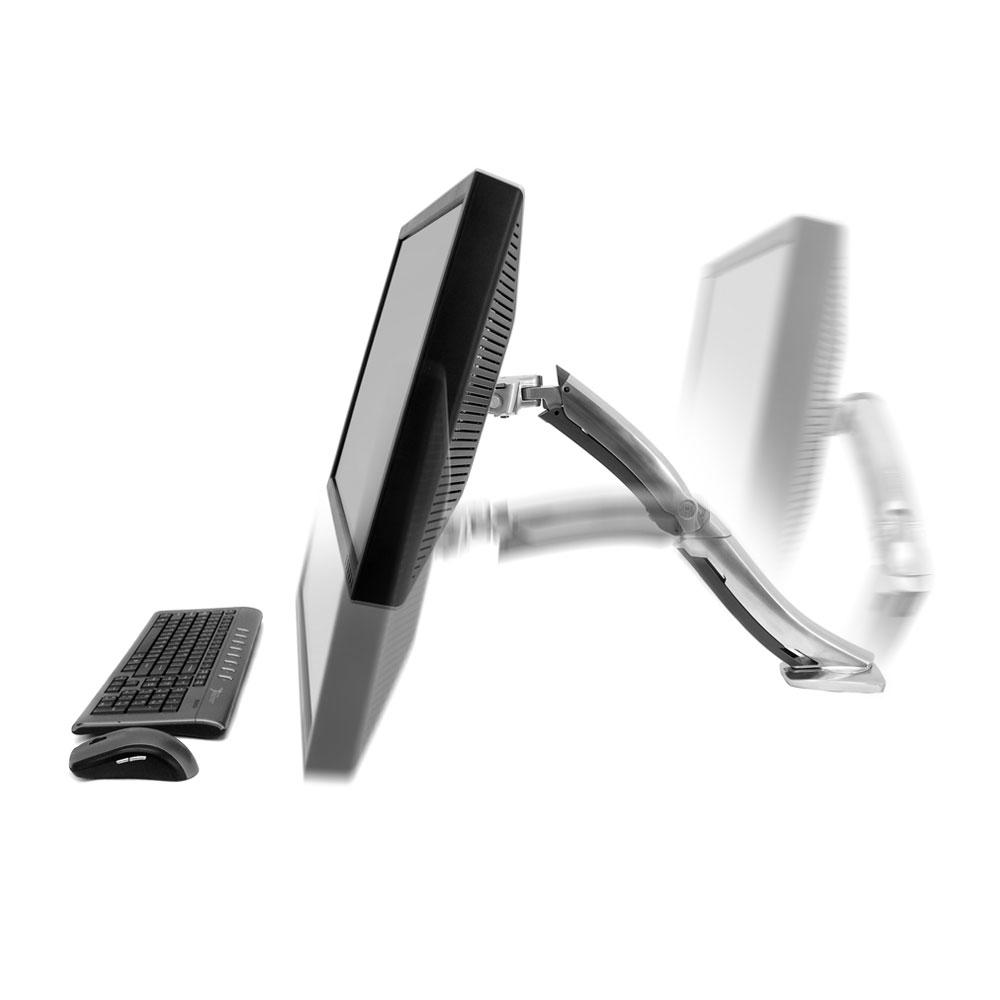

13 cm of height adjustment, extension/retraction motion, integrated tilt and portrait-to-landscape capability promote user comfort and enhance productivity.
| Weight Capacity | 6.3 - 13.6 kg |
| LCD Size | ≤ 30 |
| Tilt | 75° up and 5° down |
| Rotation | 90° for portrait or landscape viewing |
| Portrait mode is incompatible with 30" displays | |
| Material | High quality aluminum alloy |
| Pan | 360° |
| Lift | 130mm |
| VESA | MIS-D/E/F |
| Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm); VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm); VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm). |
Mounting Options
Desk Clamp attaches to surface edge 66 mm thick.
Grommet Mount attaches through surface holes 8 to 51 mm wide and up to 80 mm thick.
Technical Drawing
For technical drawing please view in gallery or download PDF file.
 |
Product Info |
|
|
Illustrations |
|
|
Installation Guide |
