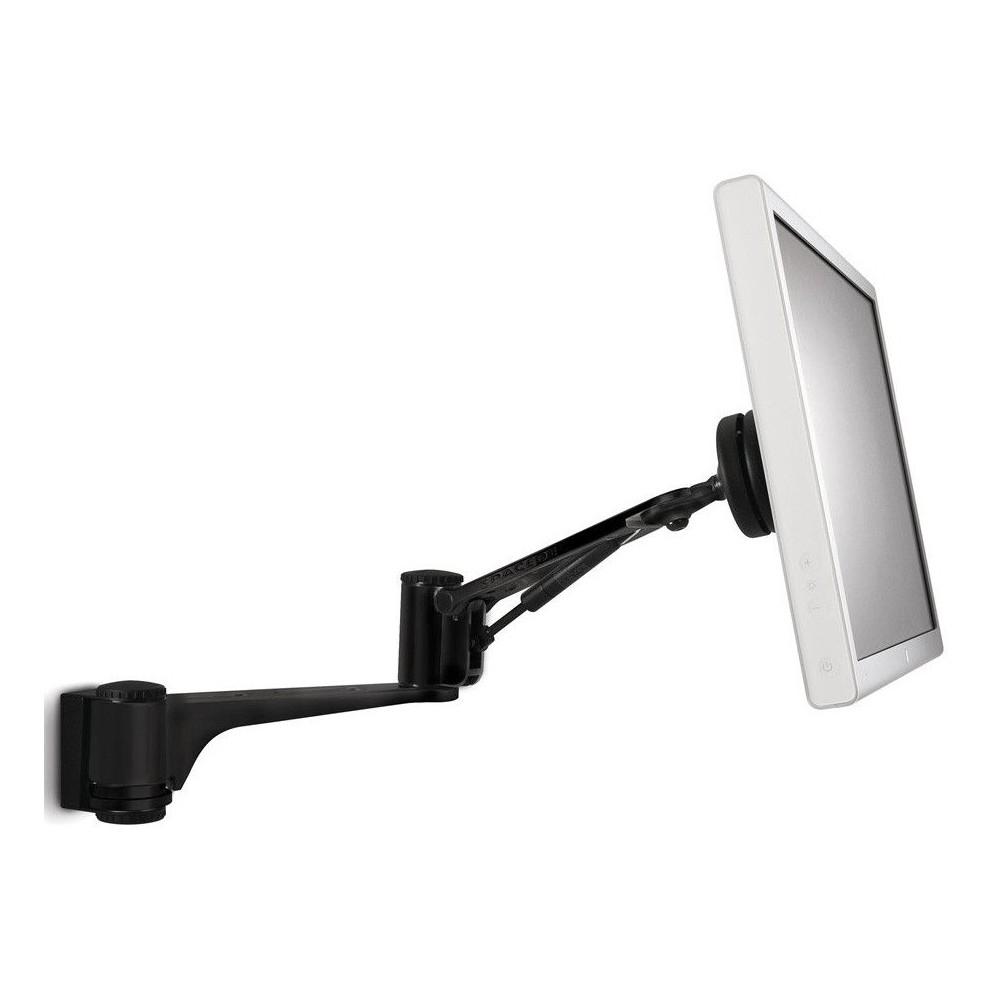

Spacedec Articulated Swing Monitor Arm - Wall Mount





Full motion mount. Weight 1.5 - 9 kg. VESA 75x75 and 100x100

The SD-AT-DW-BK wall mount helps to conserve valuable desk space by mounting monitors on a wall. This leaves a monitor footprint of zero and creates an extremely productive workspace, free from clutter. Offers the ultimate in versatility. With three separate pivot/adjustment points, the user has full control over their monitor position in terms of height, reach, tilt and screen rotation. Height adjustment is effortless due to the monitor weight counter balancing gas strut mechanism which glides the monitor into position. Screen tilt and pan of up to 40° is also made simple with a ball joint integrated into the arm to position the screen for the optimum viewing angle. Combined, these features ensure that all adjustments can be made from a seated position. Ease of use clearly drives this mount making it an obvious choice for ergonomic excellence and user productivity.

Features
  • Supports mounting hole patterns: 75mm x 75mm;100mm x 100mm
  • Gas-strut mechanism allows for easy monitor adjustment from a seated position
  • Offers a wide range of movement via 3 pivot points
  • Ball joint mechanism allows 40 degrees of display adjustment in any direction from the vertical plane
  • Portrait to landscape rotation
  • External cable management
  • Arm maximum reach: 635 mm
  • Display height adjustment range: 460 mm
  • Comes with all mounting hardware
  • 5 year warranty.
Specifications
Weight Capacity 9 kg
Tilt 20° of display adjustment in any direction
Screen Rotation Landscape to portrait
Pan 20° of display adjustment in any direction
Horizontal levelling adjustment 460 mm
Display Compatibility 75x75, 100x100
Desk Mounting Type Wall mount
Minimum distance from wall 141.9 mm
