StyleView VL Enclosure

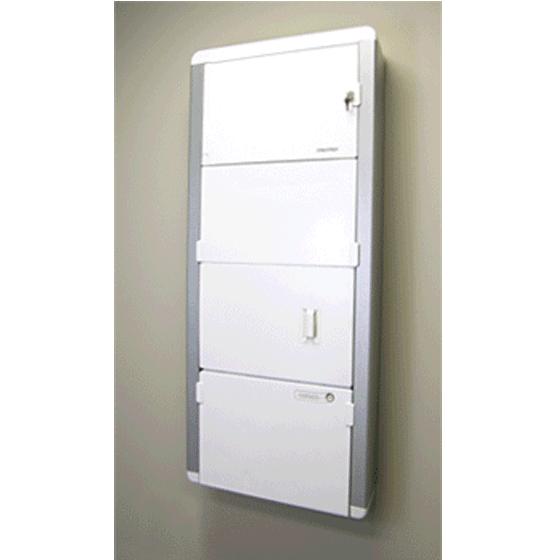

Secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9" (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use. Its keyless locking mechanism protects patient data for compliance with privacy requirements.

The slide-out, negative-tilt keyboard tray enhances user comfort, and the panning capability of the monitor and keyboard promotes patient-caregiver interaction. A unique cable management system conceals and organizes cords, making cleaning a snap!

Includes wall plate, mounting template, enclosure, vertical lift, slide-out keyboard tray, wrist rest, mouse pouch, scanner holder, internal cable management, batteries, monitor mounting hardware, wall mounting hardware, keys

Features

Secure Equipment and Patient Data

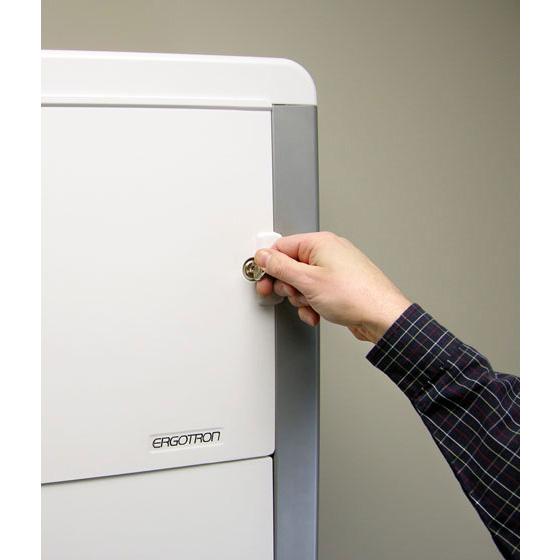

Keyless locking mechanism protects patient data and aids in the compliance with privacy requirements like HIPAA. Separate locking storage for CPU.

Premium Ergonomics
Nine-inch (229 mm) vertical adjustment of monitor and keyboard in tandem enhances ergonomics for multiple users.
Slide-out keyboard tray extends an extra 5" (125 mm) and pans for comfortable data entry.
Ergonomic negative-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry.
Patented counterbalance system provides smooth adjustment while maintaining touch-screen stability.

  • Low profile—only 6.75" (17.2 cm) deep—and narrow width make it perfect for space-constrained areas
  • Easy to use: Quick, simple 4-step installation and effortless operation
  • Advanced open-architecture design supports future hardware upgrades
  • Cable management system conceals and organizes wires and cords
  • Extremely easy to clean; promotes infection control
  • Attractive design; hides clutter associated with computer equipment
  • Slide-out mouse tray includes built-in pad surface
  • Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored
  • Keyboard tray pans left/right up to 120°
  • Integrated mouse and scanner holders
  • Cable access openings allow cables to pass through top and bottom of enclosure
  • CPU compartment is top-vented for maximum CPU heat dissipation
  • Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
  • Accommodates most small form factor and ultra small form factor CPUs

Specifications
Weight Capacity 3.6 - 14.9 kg *
LCD Size ≤ 22"
Tilt -
Rotation -
Material steel
Pan 10° ‡
Lift 229 mm
Display Compatibility VESA 75/100mm

* Weight Capacity: Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
‡  Monitor pans left/right ±5° (based on typical 17" monitor; will vary with monitor size)

Maximum CPU physical dimensions (W x H x D): 34.9 x 32.4 x 9.5 cm
Maximum monitor physical dimensions (W x H x D): 52.6 x 37.3 x 7.0 cm

Technical Drawing
For technical drawing please view in gallery or download PDF file.


Downloads
Download Product Info
Product Info
Download Illustrations
Illustrations
Download Installation Guide
Installation Guide
