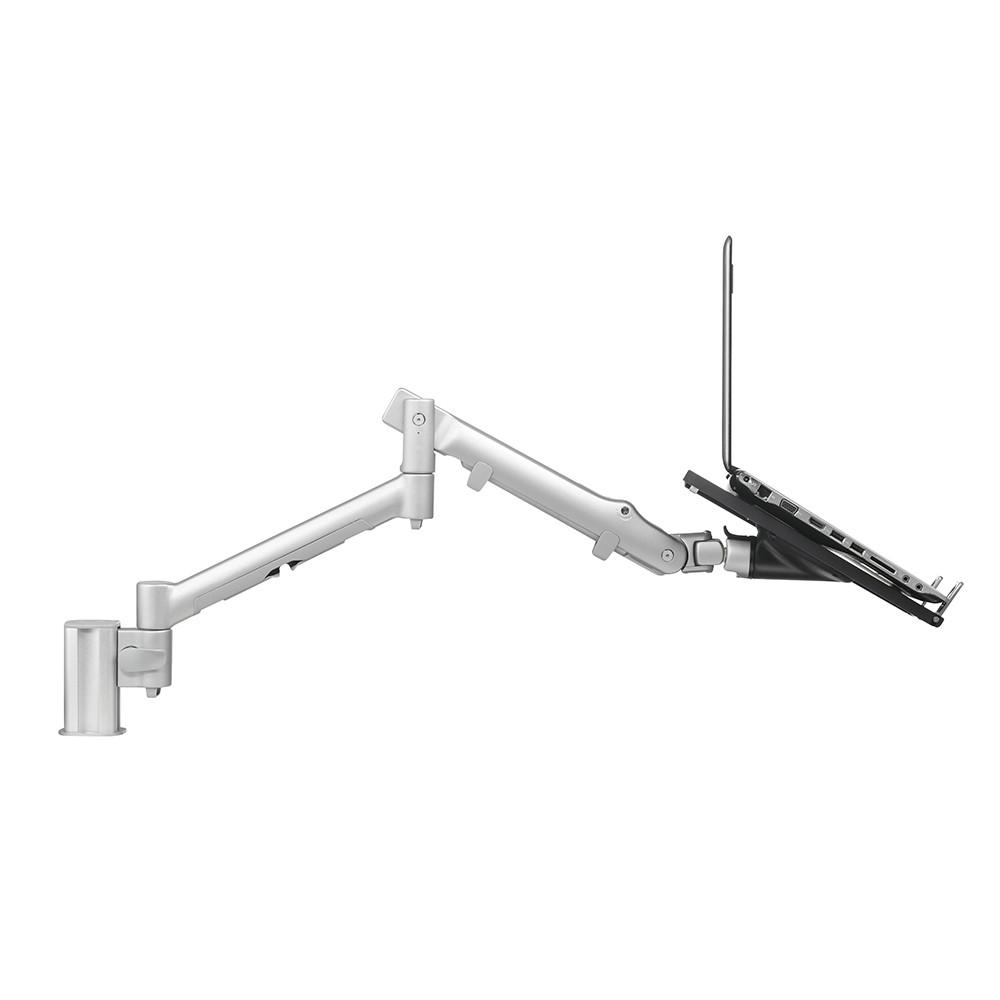

Systema AWMS-ND13-F-S Spring Notebook Arm





SYSTEMA range spring assisted single notebook desk mount. Spring assisted articulated arm on 135mm post.
Supports notebooks up to 18" weighing between 1.5kg and 8kg.
Spring assisted height adjustment, tilt, pan and portrait to landscape rotation.
Desk clamp mounting included. Advanced cable management

This solution is part of the SYSTEMA modular range and consists of the following individual components:
1 x AWM-AD dynamic arm
1 x AWM-LC channel clamp
1 x AWM-P13 135mm post
1 x SNTB notebook holder
1 x AWM-FF-S desk clamp (F-Clamp)

Features
  • Three points of articulation enable spring assisted full-motion display adjustment
  • Supports a wide range of displays from 1.5kg to 8kg in weight
  • Supports notebooks up to 18” in size
  • VESA mounting hole pattern: 75 x 75 and 100 x 100; can support 200x100 via additional adaptor plate AC-AP-2010
  • 8mm hardened steel Desk Clamp mounting included
  • Notebook tilt and pan adjustments
  • Spring tension visual gauge and quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty


Specifications
  Weight Capacity   1.5 to 8 kg
  Maximum Notebook Size   18"
  Tilt   50° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   678 mm
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   65 mm
Downloads
Download Product Info
Product Info
Download User Manual
User Manual
Download Illustrations
Illustrations
