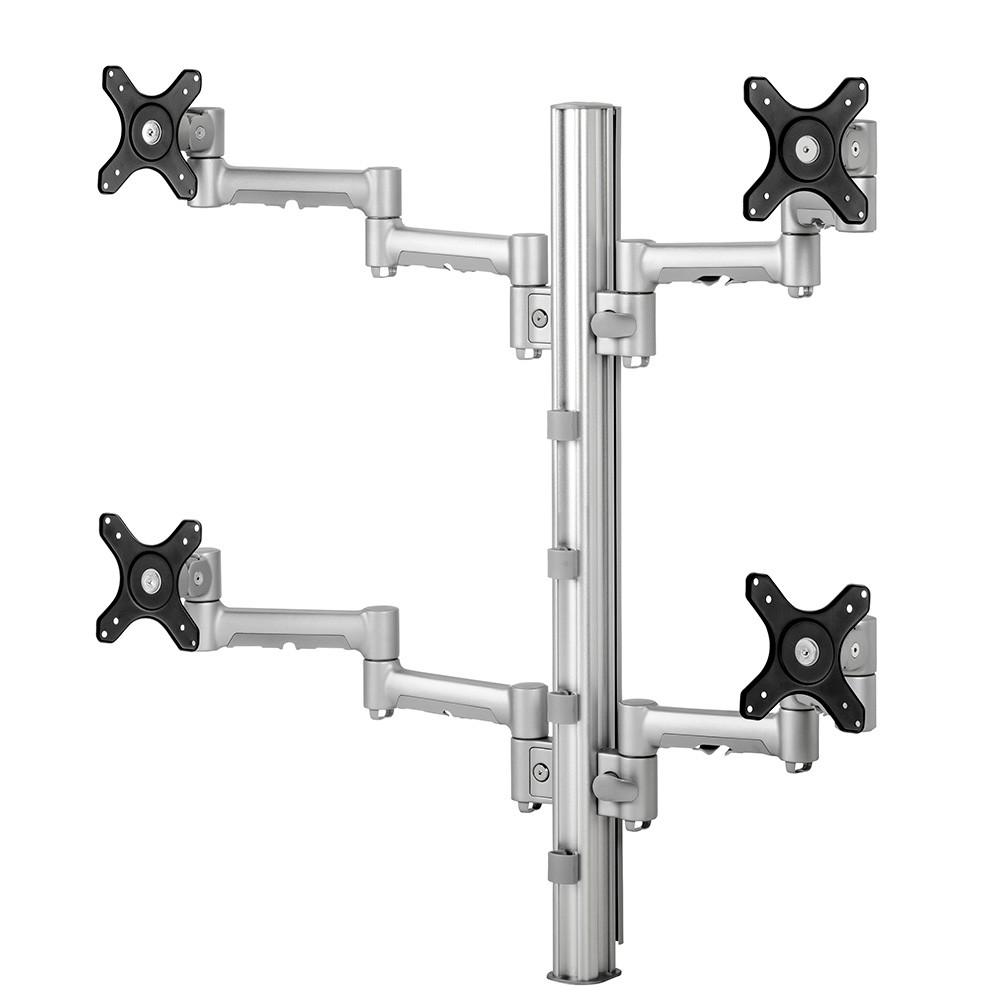

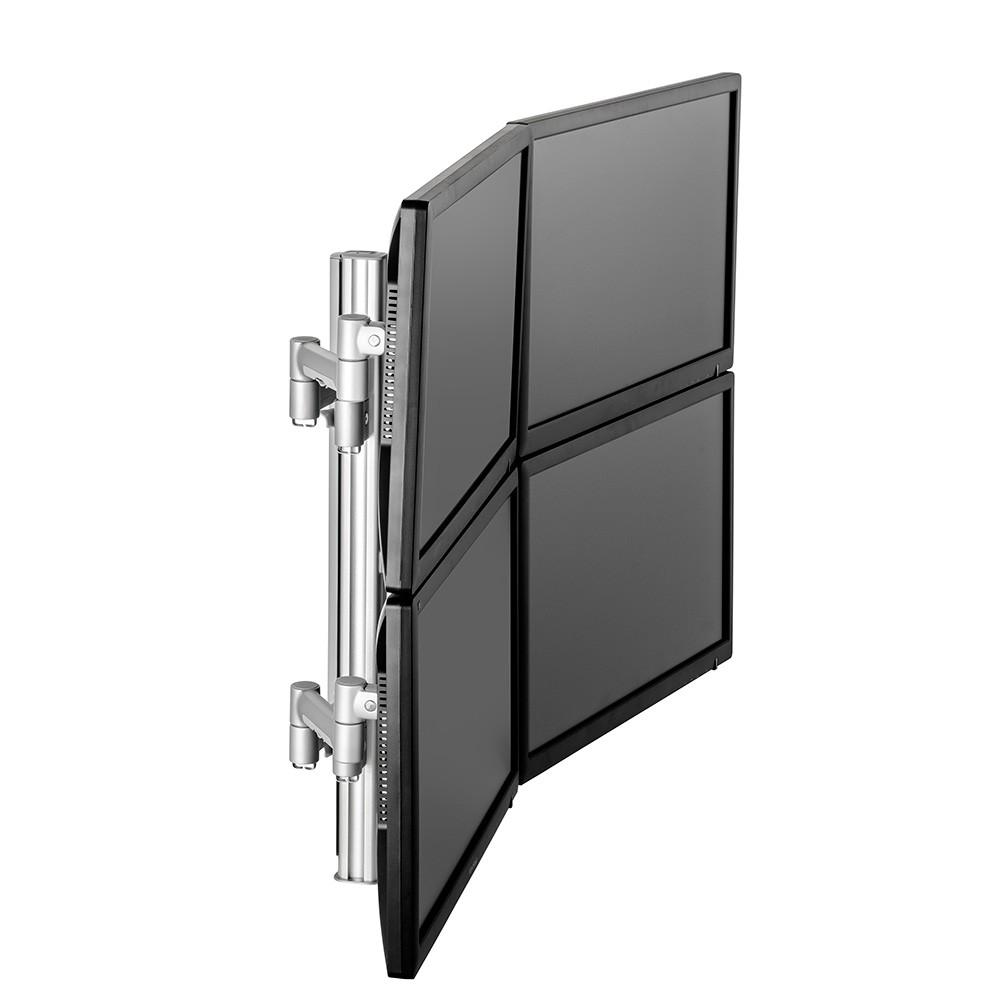

Systema AWMS-4-4675-H-S Quad Monitor Arm





SYSTEMA AWMS-4-4675-H-S desk mount for 4 displays on 750mm post. 4 x 460mm arms support displays up to 12kg.
VESA 75x75mm & 100x100mm. Display height adjustment, tilt, pan, portrait to landscape rotation.
Desk clamp mounting included.

This solution is part of the SYSTEMA modular range and consists of the following individual components:
4 x AWM-A46-S display arm
1 x AWM-P75-S post
1 x AWM-FH-S desk clamp (heavy duty F-Clamp)

Features
  • Three points of articulation enable full-motion display adjustment
  • Supports a wide range of displays up to 12kg in weight
  • VESA mounting hole pattern: 75 x 75 and 100 x 100
  • 8mm hardened steel Desk Clamp mounting option included
  • Display tilt, pan, landscape to portrait rotation
  • Quick release/attachment mounting head to assist with multiple installations
  • Made of durable and easy to recycle steel and aluminium
  • Green Star - Office Interiors compliant product
  • Designed for extended use and easy disassembly at the end of the products life
  • 10 year warranty

Specifications
  Weight Capacity   12 kg per display
  LCD Size   up to 30” in a landscape orientation or up to 22” when both displays are installed in portrait mode
  Maximum Notebook Size   18"
  Tilt   45° upward and 25° downward
  Screen Rotation   Landscape to portrait
  Pan   90° left and 90° right
  Maximum Arm Reach   Check specification document
  Display Compatibility   75x75, 100x100
  Desk Mounting Type   Desk clamp
  Material   Steel, Aluminium and Plastic
  Maximum Desk Thickness   68 mm
