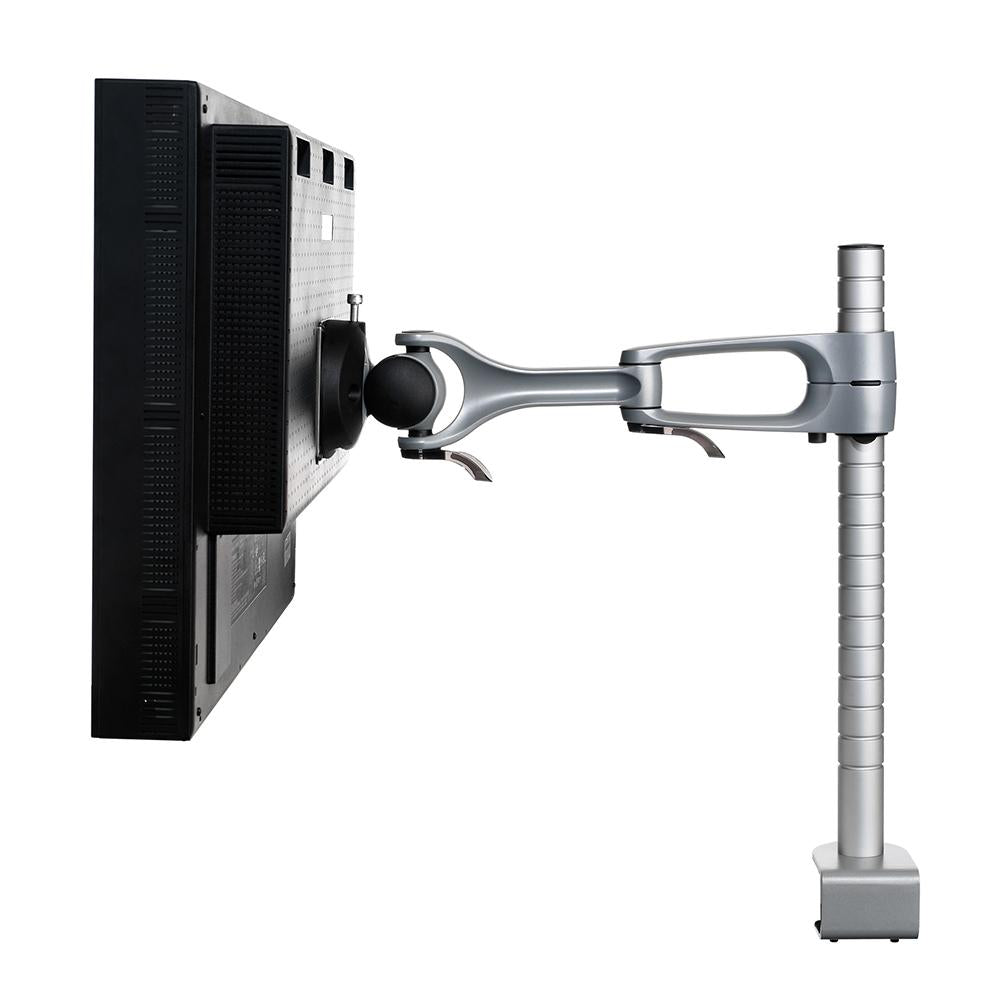

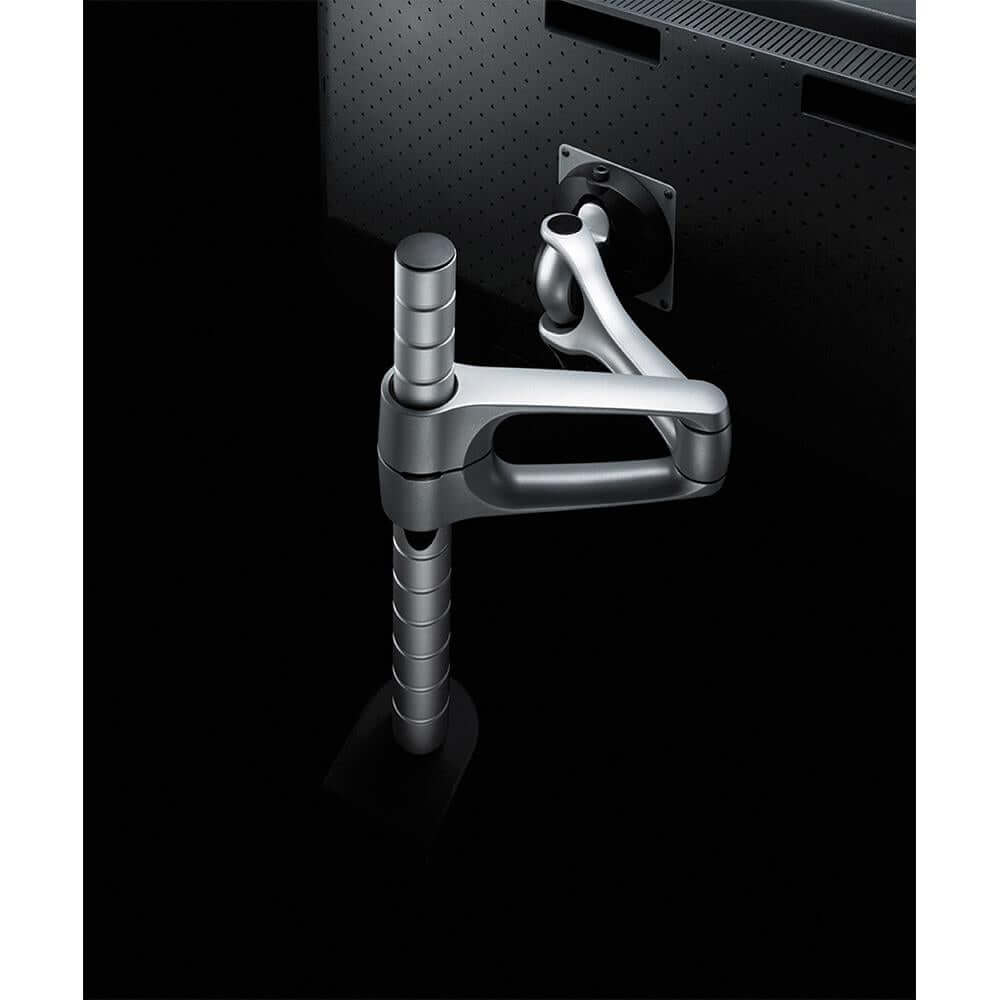

Wishbone Plus Monitor Arm





Wishbone Plus is essentially the heavyweight version of the classic Wishbone. Designed to meet the requirement for heavier screens, it can support weights of up to 24 kg, comfortably supporting the majority of larger format screens, iMac’s and all-in-one PC/Monitors.

Features
  • Can be installed at different heights to suit different user environments
  • Post system can be extended to increase height range
  • Integrated cable management
  • Quick release mechanism as standard - the monitor can be released from the arm in seconds
  • Suited to multi-screen environments
  • Flexible arrangements due to wishbone post system

Specifications
Weight Capacity   up to 24 kg
Tilt   180°up / down
Rotation   90° for portrait / landscape viewing
Pan   180° left / right
Lift   N/A
Arm Extension   437 mm
Colour   Brushed Silver
Display Compatibility   VESA 75/100mm
Mounting Options   Desk clamp - for desk < 38 mm thick
    Bolt through - for desk < 35 mm thick

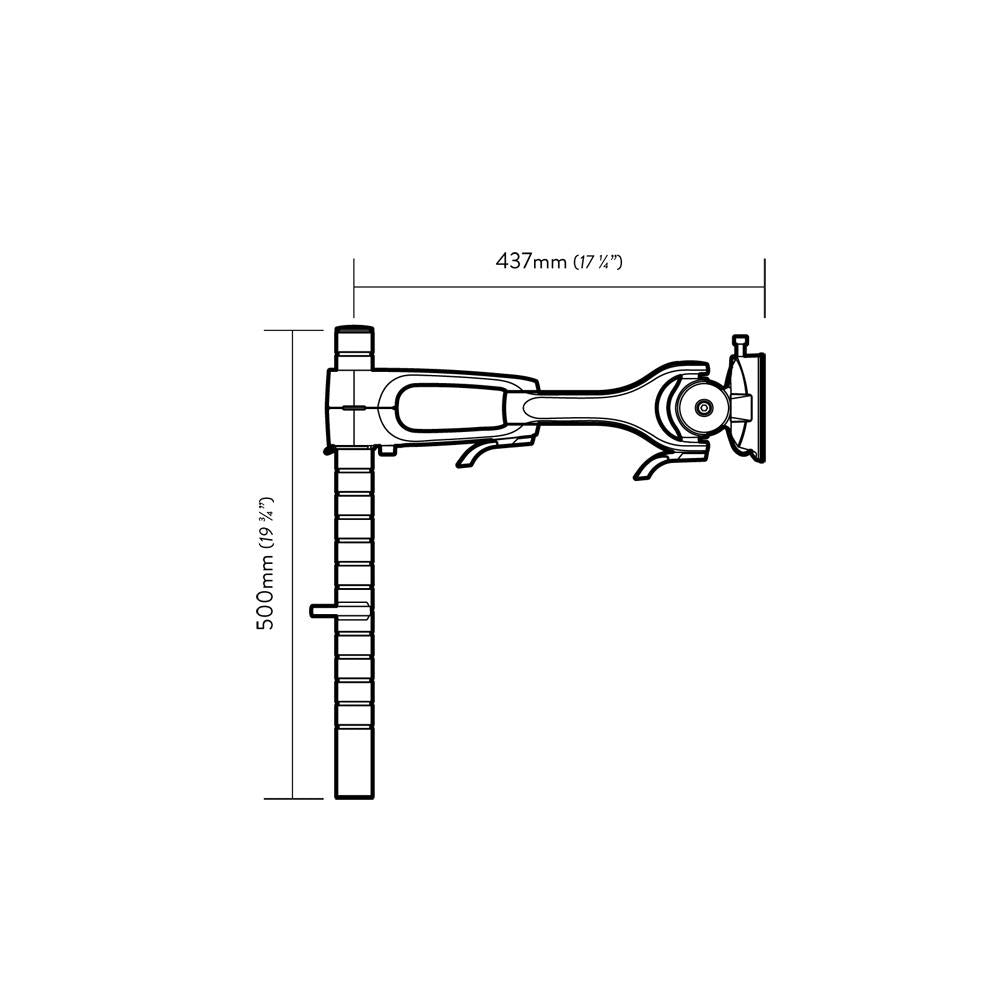

Technical Drawing
For technical drawing please view in gallery or download PDF file.


Downloads
Download Installation Guide
Installation Guide
